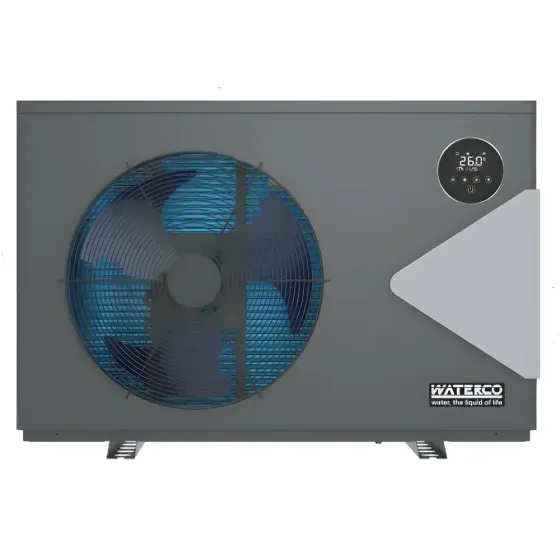

Waterco VariTropic Front Discharge Pool Heat Pump 5.62kW - 17.23 kW
The VariTropic Series is meticulously engineered for tropical (T3) climates, delivering reliable performance even in extreme ambient temperatures ranging from -10°C to 53°C.
The VariTropic Series is meticulously engineered for tropical (T3) climates, delivering reliable performance even in extreme ambient temperatures ranging from -10°C to 53°C.
It incorporates advanced full inverter technology to maximize energy efficiency and ensure exceptionally quiet operation, making it ideal for residential pool environments. The premium aluminium alloy casing features an oxidation treatment, providing superior resistance to corrosion and extending the product’s lifespan in humid, challenging conditions. With standard integrated Wi-Fi and app control, the VariTropic Series offers effortless, remote pool management, giving homeowners complete convenience and peace of mind.
Front Discharge- Compact, space-saving design for flexible installation
- Ideal for residential pools with limited installation space or specific airflow needs
- Models available with capacities: 17–26kW, for pools 40–110 m³
Technical Information
| Pool Volume m3 | 40-80 |
| Performance Condition | Air Temperature 27°C, inlet / Outlet Water Temperature: 26°C / 28°C, Humidity 80% *The COP of 20 may be achieved by having the compressor running at 20% capacity. |
| Heating Capacity kW | 5.62-17.23 |
| Power Consumption kW | 0.28-2.82 |
| COP w/w | 20.07-6.11 |
| Performance Condition | Air Temperature 35°C, inlet / outlet water temperature 28°C / 26°C |
| Cooling Capacity kW | 5.52-11.00 |
| Power Consumption kW | 1.11-2.67 1. |
| EER w/w | 5.16-4.06 |
| Power Supply | 220-240V-50Hz |
| Operating Air Temp. °C | -10-53 |
| Refrigerant | R32 |
| Material of Casing | Aluminium casing with oxidation |
| Compressor | Mitsubishi |
| Fan Motor Type | DC |
| Water Connection | 50 |
| Noise Level (1m) dB(A) | 39-48 |
| Advised Water Clow m3/h | 7.4 |
| Min advised water Flow m3/h | 5.18~ |
| Water Drop Pressure kPa | 20 |
Dimensions
| A (mm) | 965 |
| B (mm) | 400 |
| C (mm) | 650 |
| D (mm) | 610 |
| E (mm) | 380 |
| F (mm) | 420 |
| G (mm) | 95 |
| SKU | 170R3V-B3 |
|---|---|
| Manufacturer | Waterco |
| Warranty | 5 Years compressor & titanium heat exchanger, 2 years on everything else |
| Discount Group | H4 |
| Re-stock date | Call For Availability |
| Lead Time (Days) | 5 |
