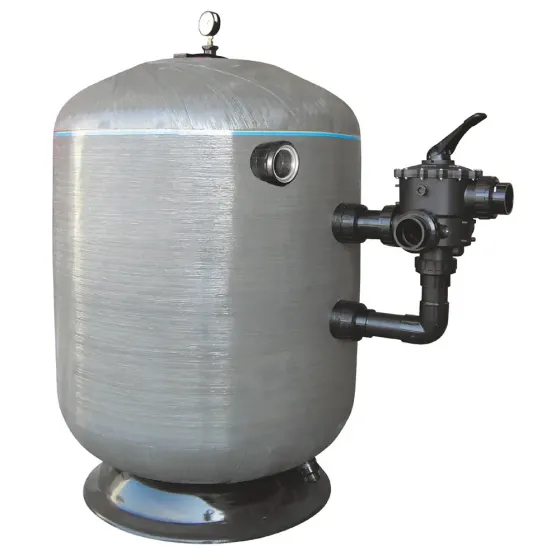

Waterco SMD1050 Micron Side Mount Bobbin Wound Sand Filter
Availability : Please call Customer Services to order
SKU
22501050903
Waterco Bobbin Wound Side Mount Filter Including Sight Glass
- Fibreglass wound tank, UV and Corrosion Resistant Hydraulically balanced laterals to maximise water flow and filtration.
- Optional six position Multiport valve and quick connect half unions available upon request
- Pressure rated at 2.5 Bar (36 psi)
- Maximum working temperature of 50°C (122°F)
- Sight glass included
Specifications
| Connection Size | 3 Inches | 90 mm |
| Filter Area | 0.87 mm | |
| Bed Depth | 1000 mm | |
| Maximum Flow Rating 30³m/hr/m² | 26 m³/hr | |
| Maximum Flow Rate 40³m/hr/m² | 35 m³/hr | |
| Sand | 1410 kg | |
| Eco Pure Media | 1159 kg | |
| Glass Pearls | 1560 kg |
| SKU | 22501050903 |
|---|---|
| Re-stock date | Please call Customer Services to order |
| Manufacturer | Waterco |
| Discount Group | F |
