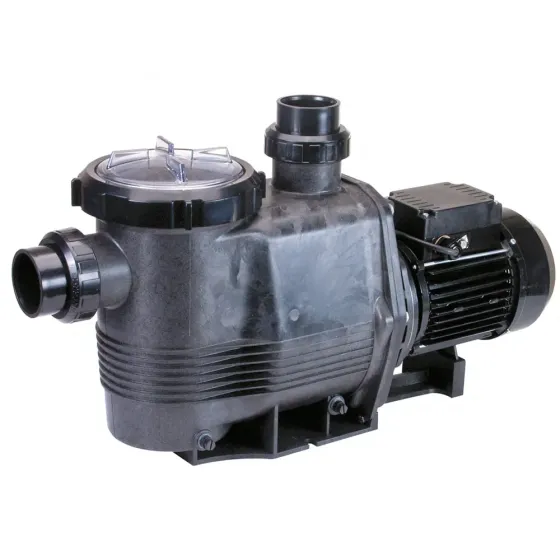

Waterco Hydrostorm Plus 400 – 2.5in connections 2.738kW 21.0m3/hr

The Hydrostorm plus has all the proven features of the Hydrostorm with the addition of an innovative lid & lock ring for easier maintenance and a larger strainer basket for increased capacity Situated between the pump wet end & the pump motor, a mechanical seal forms a seal around the motor shaft to prevent water from travelling along the motor’s shaft. The mechanical seal is the wearing part of any pool pump. A mechanical seal may leak water if the pump is ever run dry or simply be worn out. The “Motor Protection Bracket” adds a 60.5mm separation between the pump’s wet end and its motor. It is designed to protect the pump motor by draining any leaks from a worn mechanical seal.

• Clear basket lid
• Quick connect barrel unions for UPVC pipe
• High grade stainless steel mechanical seal with 316 stainless steel spring assembly
• High performance motor - IP55 rating - Motor shaft 431 grade stainless steel - Fan cooled - Thermal overload protection
• Stable support base
• Hydraulically efficient impeller and diffuser design
• Strong single piece glass filled thermoplastic pump body
• Drain plugs
• Extra-large strainer basket – captures debris and protects the impeller
• Motor protection bracket protects the motor from a leaking mechanical seal
