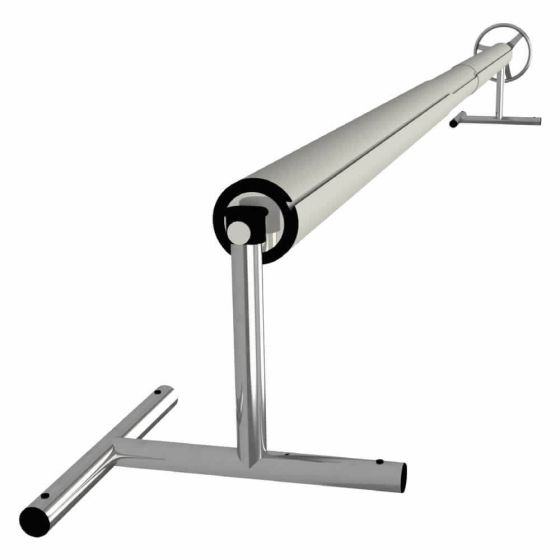

Plastica Small Slidelock Max Standard Reel with Gearbox

Login to view prices
Availability : In 10 working days
SKU
PRD400K
Following on from our enormously successful Domestic Slidelock System. We are introducing our New Slidelock Max with our upgraded and unique 138mm diameter anodised aluminium tubes, giving us a range from 6.0m, to 8.0m for covers up to maximum 7.7m width. (19’ 9” to – 25’ 3” maximum cover width).

Following on from our enormously successful Domestic Slidelock System. We are introducing our New Slidelock Max with our upgraded and unique 138mm diameter anodised aluminium tubes, giving us a range from 6.0m, to 8.0m for covers up to maximum 7.7m width. (19’ 9” to – 25’ 3” maximum cover width).

Keeping the very popular way our straps connect to tubes by our slide and lock fixing system. Our own locking device holds the tube in position, stopping the cover from unwinding.

The tubes and covers are supported by our new range of end stands made from highly polished 48mm diameter 316 stainless-steel tube. Using our new special end bosses with our new stainless steering wheel. The new range includes our upgraded T-Model, Base Plate and our shaped wall mount.

Small Slidelock Max system tubes go from 6.0m to 7.0m, for covers up to a maximum 6.7m width (19’ 9” to 23’ tubes – 22’ maximum cover width)

  • Highly polished stainless steel end stands
  • Anodised aluminium tubes
  • Acetal end bosses
  • Stainless steel steering wheel
  • Straps connect to tubes by our unique slide and lock fixing
  • Locking device holds the tube in position, stopping the cover from unwinding
  • Upgraded T-model, Base Plate & new shaped wall mount end stands
  • 24V, Mechanical limit switches, IP68 watertight motor, full instructions available
Please Note: Reels should be set up to have a minimum 150mm and maximum 300mm overlap each side. Maximum recommended area of material on both reels is 175sq.m. Cover/tube overlap should be kept to a minimum. Some flexing of the tube may occur with larger covers.
More Information
SKUPRD400K
Re-stock dateIn 10 working days
Lead Time (Days)10
ManufacturerPlastica
TypeStandard
Reduction GearboxWith Reduction Gearbox
Discount GroupK
