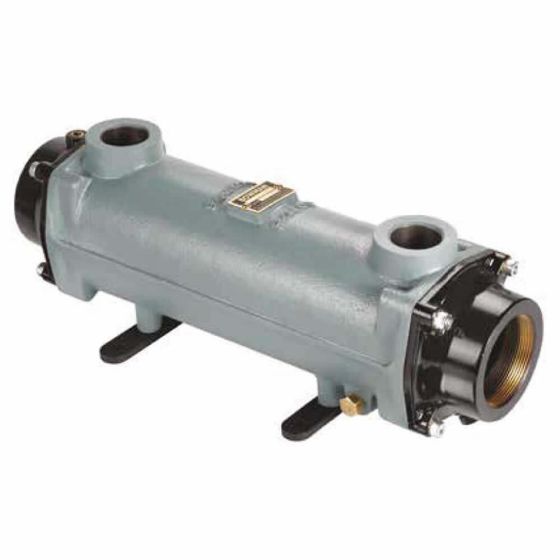

Bowman Heat Exchanger 110kw (375,000 BTU) Titanium
With more heat transfer tubes than most competitor products, Bowman units heat pools up to three times faster, reducing energy costs and saving money.
When it comes to heat transfer solutions for your pool, Bowman delivers nothing less than optimum performance. Literally tens of thousands of their units are operating efficiently and reliably around the world, from spas and hot tubs to Olympic pools, in both commercial and domestic applications.
Whether your pool uses conventional heating or renewable energy, the unique design and technology of Bowman heat exchangers will help you achieve faster heat-up times while reducing your energy consumption, costs and CO2 emissions.
With more heat transfer tubes than most competitor products, Bowman units heat pools up to three times faster, reducing energy costs and saving money.
An easily removable tubestack and end covers makes cleaning and maintenance procedures very simple and straightforward.
- Titanium tubes
- Plastic ends
- Non-threaded thermostat pocket
- Both 1.5in and 50mm unions supplied
- Delivers up to 110kW heat transfer, ideal for small domestic pools, spas and hot tubs
NOTE : Not suitable for salt water use
Technical Specifications
| Tube Material | Titanium |
| Typical Pool Capacity | 180 m/3 or 39,500 gal |
| Maximum Pool Water Flow | 22.8 m3/h or 380 l/min |
| Maximum Hot Water Temp | 110°C |
| Maximum Operating Pool Pressure | 6 bar or 87 psi |
| Maximum Operating Pressure Hot Water | 6 bar or 87 psi |
| SKU | FC100-5114-2T |
|---|---|
| Manufacturer | Bowman |
| Kilowatts | 110kW |
| Warranty | 1 year |
| Discount Group | K |
| Re-stock date | Shipped direct from the manufacturer |
| Lead Time (Days) | 0 |
