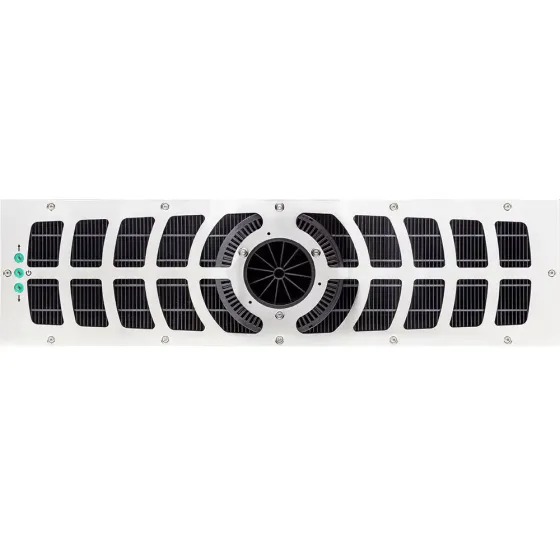

Badu Jet Turbo Pro standard assembly kit Design No.1 s/s front panel

The BADUJET® Turbo Pro represents a radical redesign. Requiring no plumbing, they are much simpler to install. A large propeller draws water directly from the pool, eliminating the need for pipes or pumps. Importantly, these systems are now also completely variable speeds and significantly quieter by design.

Features

• 1,500 Gallons per minute for professional performance
• Propeller-driven design for clean, turbulence-free flow
• Multiple speed for any level of swimmer
• Intuitive controls both underwater and on your phone
• Innovative direct-in-wall design eliminates costly plumbing
• Large anti-entrapment cover for safety and peace of mind, made of durable Marine Grade 316 Stainless Steel

Installation Specification
The BADUJET® Turbo Pro should ideally be incorporated into the design phase of the pool.

• Requires a straight wall within the pool for installation with a clear unobstructed area in front of it measuring 3m wide x 6m long x 1m deep for it to be used to its full potential
• BADUJET® Turbo Pro housing measures 1524mm x 432mm x 406mm
• A vault measuring 610mm x 610mm x 820mm should be built behind the BADUJET® Turbo Pro, allowing access to the motor and proper drainage. Motor damage due to flooding will not be covered under warranty
• BADUJET® Turbo Pro system is provided with installation instructions for various pool construction types. They can be installed on either new or existing pools, and on any style; but are intended for gunite or fibreglass builds.

Technical Information

** Also available in Plastic

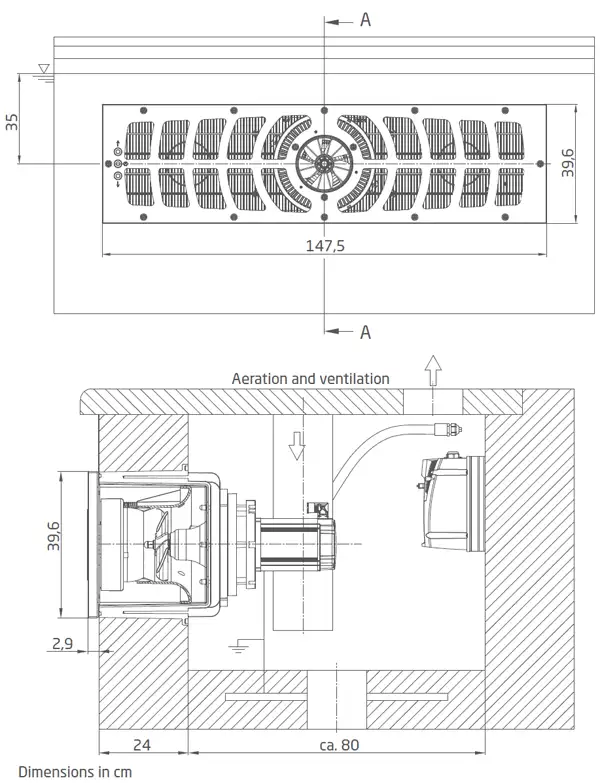

Dimensions
