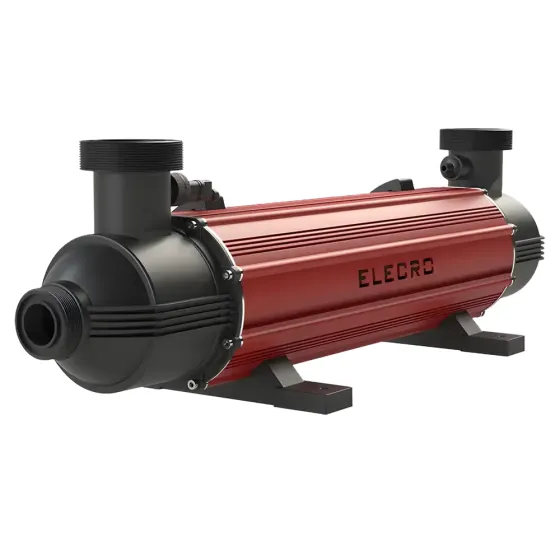

Elecro Commercial 320kW Grade 1 Titanium Heat Exchanger

Cutting-edge design for large volume pools, ensuring optimal heat transfer rates, and maximising efficiency while minimising operational costs. G2C helps reduce energy consumption and CO2 emissions for heating and cooling applications, including central boilers, heat pumps, chillers, and thermal solar panels.

• Available in four models with a vast capacity range from 150-kW to 300-kW
• Optimised design using Computational Fluid Dynamics (CFD) analysis
• Grade 1 Titanium tube bundle for maximum corrosion resistance and anti-fouling, thus reducing maintenance and operation cost
• Twisted tube design promotes turbulence on both shell and tube sides, improving heat transfer coefficients compared to traditional straight tubes
• Suitable for seawater and marine applications
• Up to 4 bar pressure tolerance
• Reduced operation pressure drops at high flow rates
• Compact design with greater heat transfer for the same footprint
• Temperature and flow sensor ports
• Optional integration of controller and booster pump
• Suitable for cooling applications with a water-glycol mixture
• Floor or wall mountable

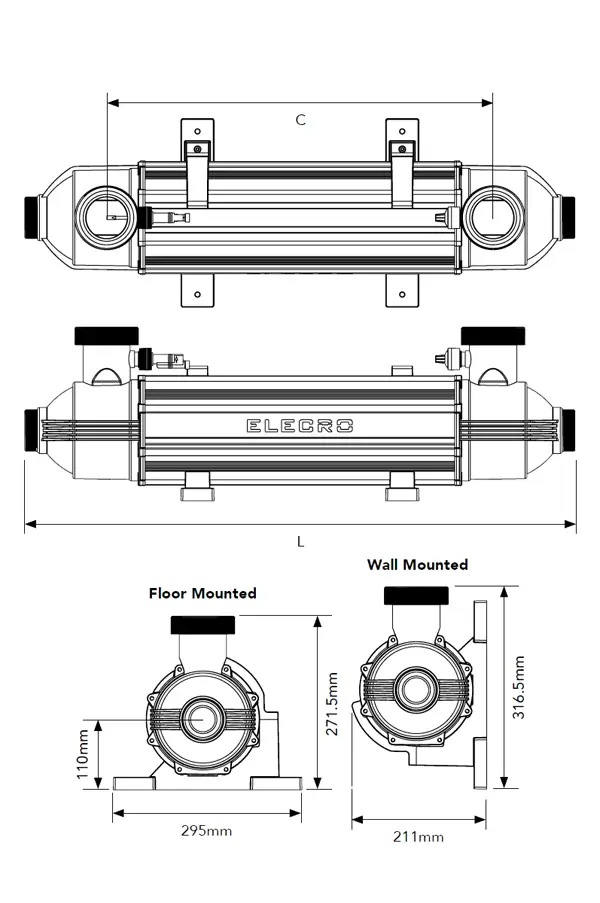

Technical Information
