Elecro HR UV-C 55 Spares

Grouped product items

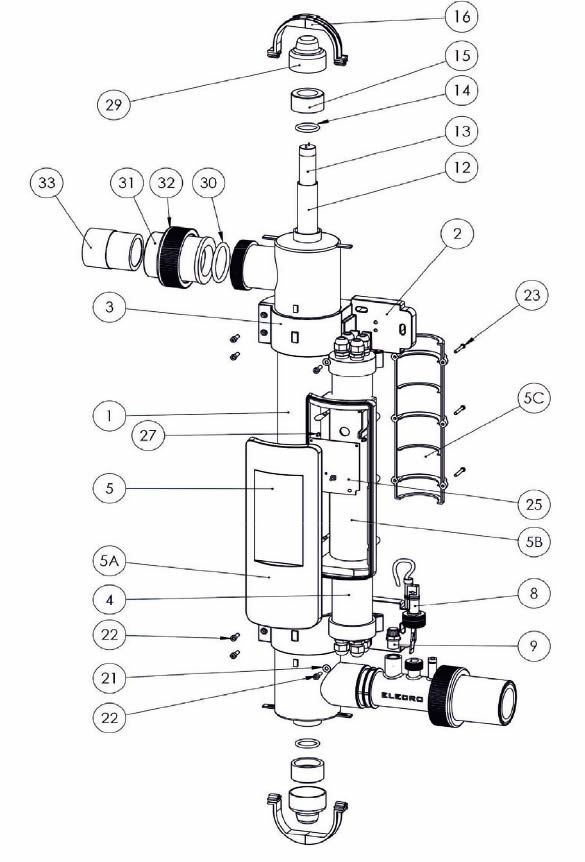

No.	Item No.	Product Name
1	SP-UV-B-HR-FS-55	HR-UVC 55 Replacement Body Assembly

2	Z-IM-UV-ST-RB	HR-UVC 55 Rear Mounting Bracket

3	Z-IM-UV-ST-FB	HR-UVC 55 Front Mounting Bracket

4	SP-UV-CG-QSH-55-UK	HR-UVC 55 Control Gear (Complete with lamp LEDs)

5	SP-UV-HR-ENC	HR-UVC 55 Digital Control Enclosure

6	SP-UV-HR-FC	HR-UVC 55 Digital Front Cover Including Overlay

7	Z-IM-UV-ENC	HR-UVC 55 Rear Enclosure

8	Z-IM-UV-CLAMP	HR-UVC 55 Enclosure Clamp

9	SP-107-UV-B	HR-UVC 55 Flow Switch

10	SP-UV-T-BC	HR-UVC 55 Injection Port Blanking Cap & O-Ring Seal

12	SP-UV-QS	Elecro Spectrum UV Quartz Sleeve

13	SP-UV-LAMP-EL	55w Replacement UV Lamp

14	SP-UV-ORS	Elecro Spectrum UV Quartz Sleeve O-Ring Seal

15	SP-UV-LNUT	Elecro Spectrum UV Quartz Sleeve Locking Unit

16	SP-UV-LCR-S	Elecro Spectrum UV Lamp Holder/Restraint (2 halves & screw)

21	Z-FIX-M5FCW	HR-UVC 55 M5 Flat From C Washer A2

22	Z-FIX-M4.8X19STS-SC	HR-UVC 55 Ballast Fixing Screw

23	Z-FIX-M4x40	HR-UVC 55 M4 x 40mm Enclosure Fixing

25	SP-UV-HR-PCB	HR-UVC 55 Maintenance Timer PCB

27	Z-FIX-M3X8-BLK	HR-UVC 55 M3 x 8mm PCB Fixing

29	SP-UV-LLL-S	Elecro Spectrum UV Lamp Lead Connection

30	Z-ORS-UNI-L	HR-UVC 55 Large Union O-Ring Seal
